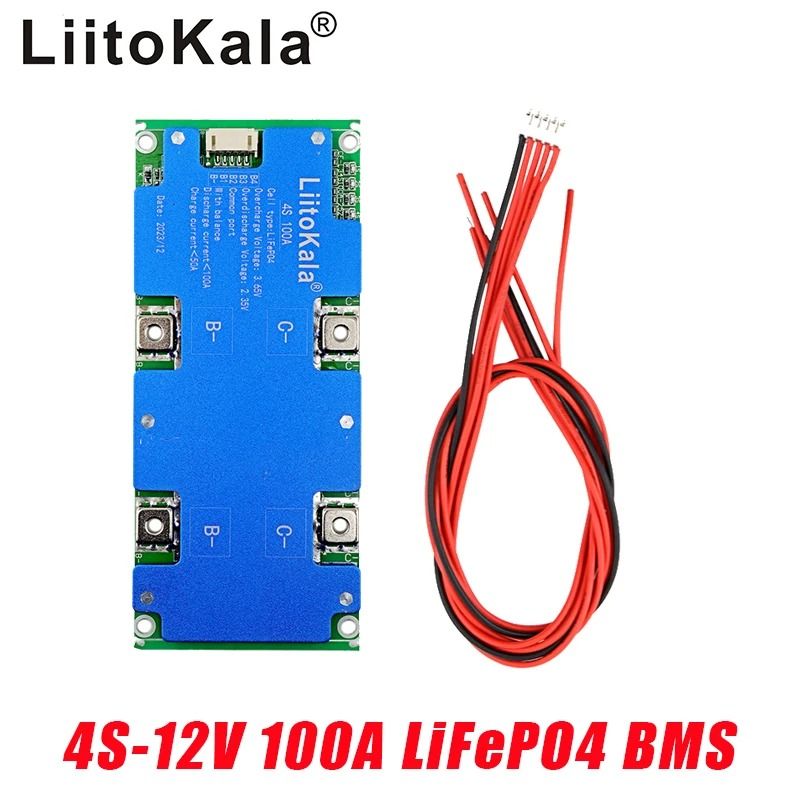

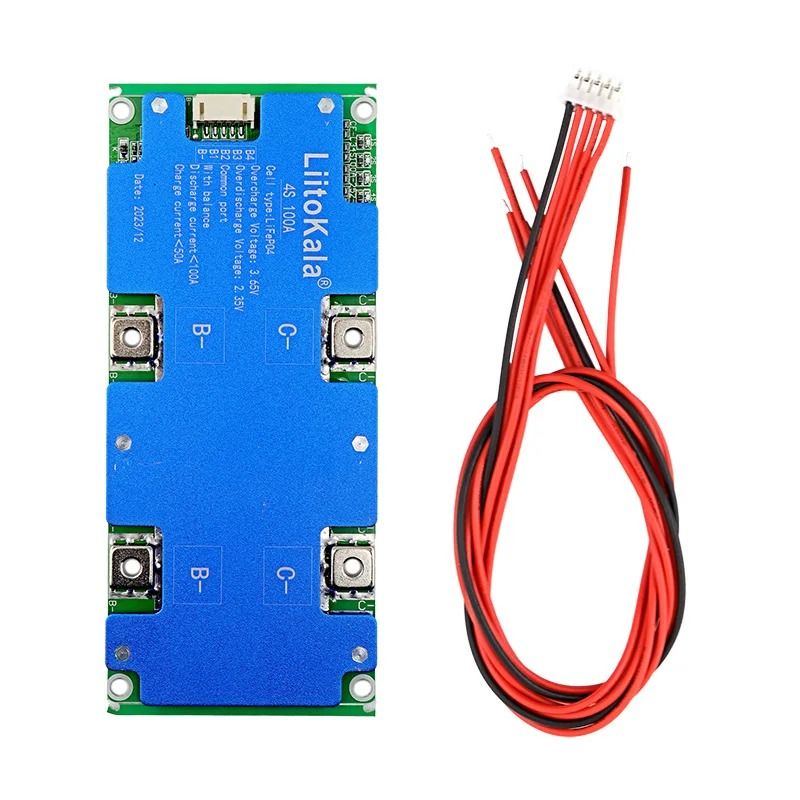

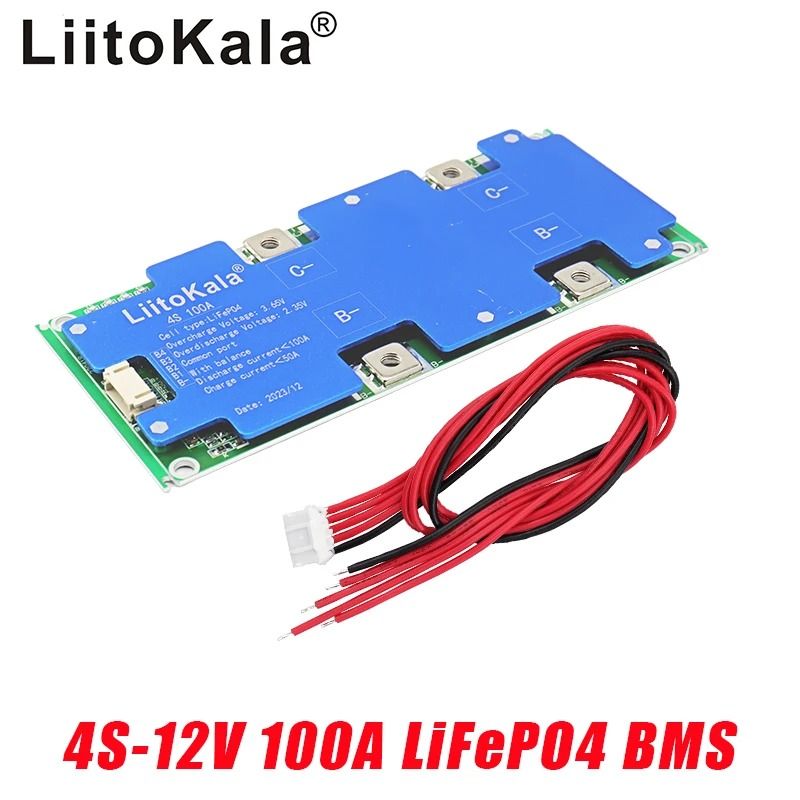

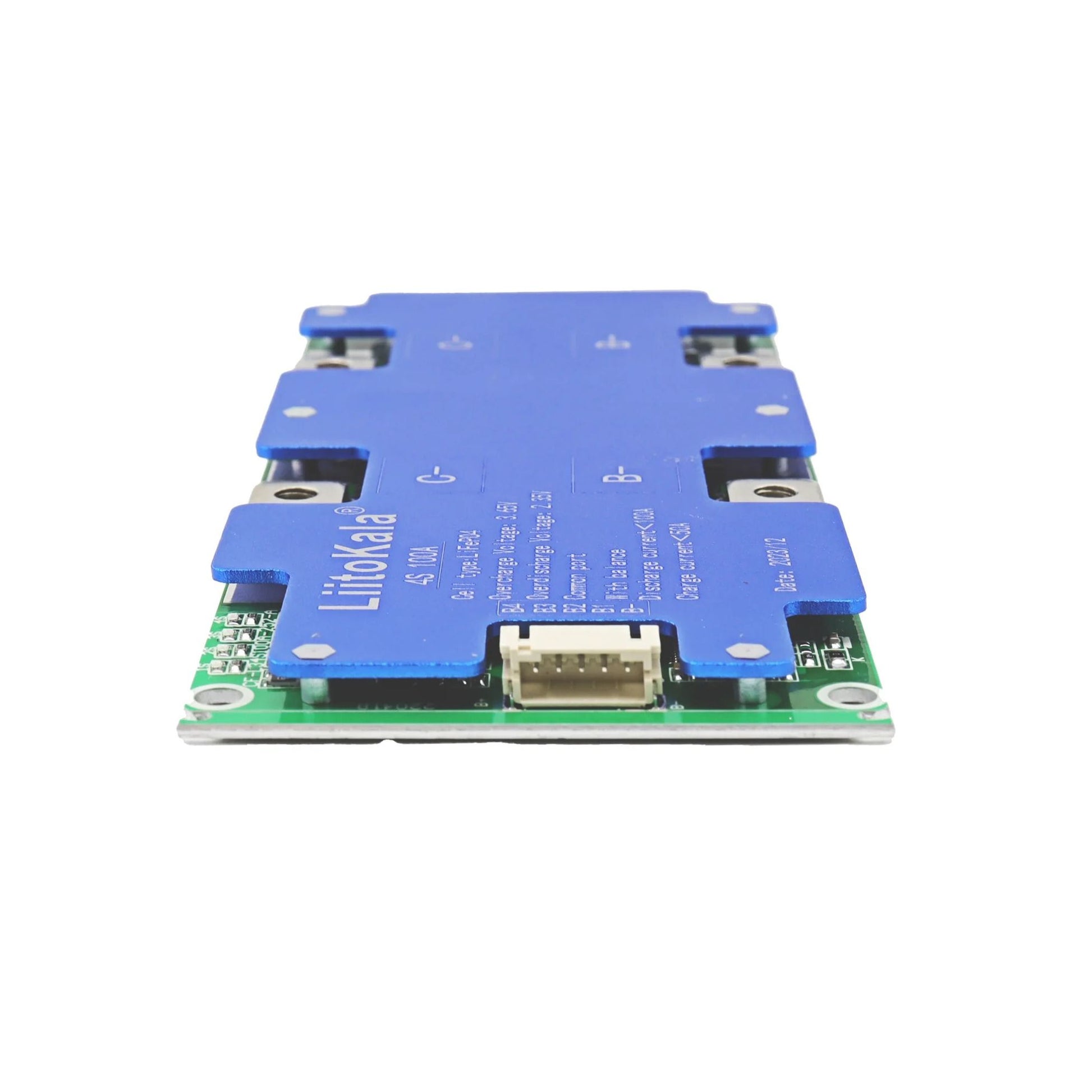

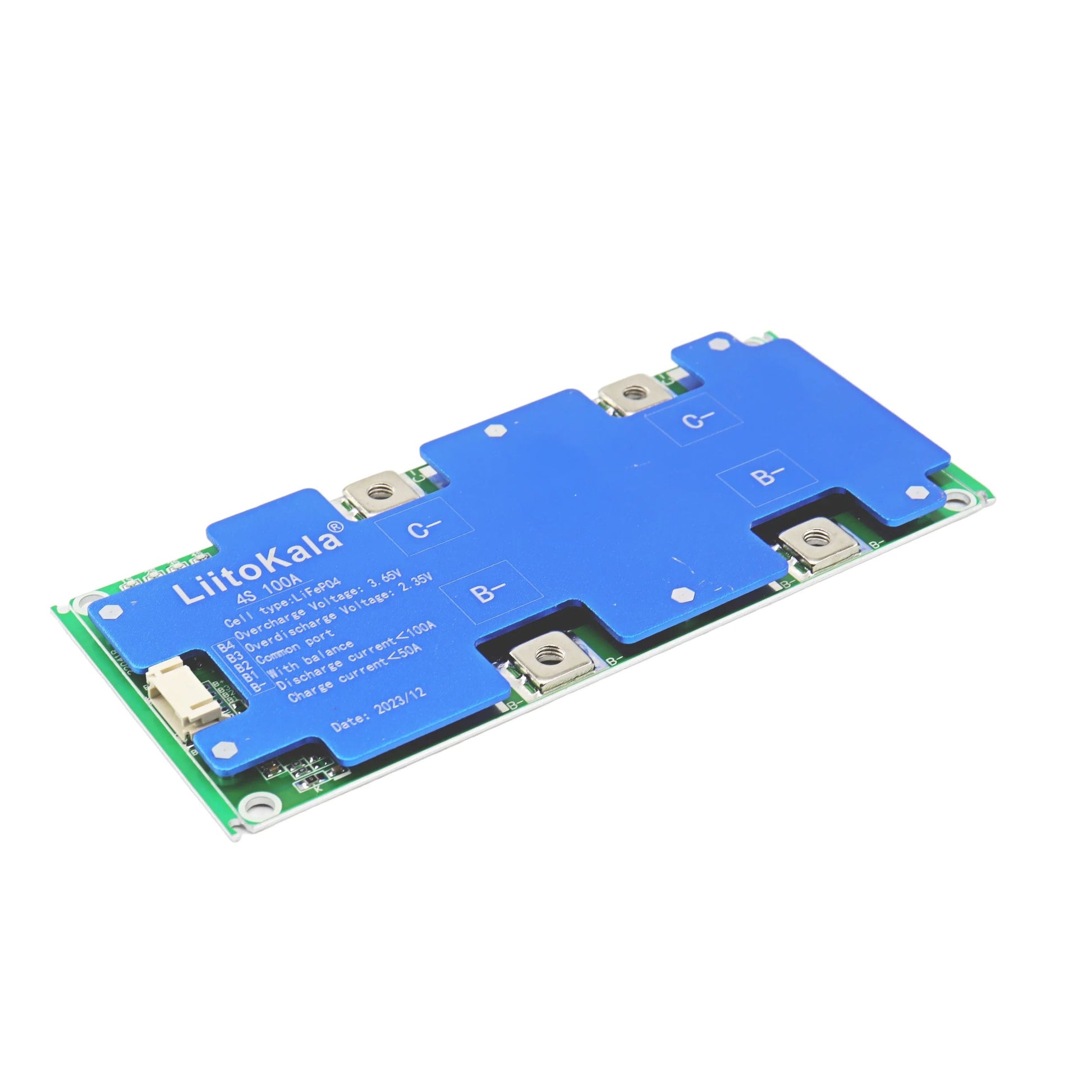

LiitoKala 4S 12V 100A LiFePO4 Battery Protection Board with Balanced Charging

Name: LiitoKala 4S 12V 100A LiFePO4 Battery Protection Board with Balanced Charging
Brand: Uplifted Finds
SKU: BMGR5PC6PS
Price: 225.94 USD
Availability: InStock

$225.94

- 0% Sold out

Fast Delivery

Free returns

Order within

→

Ships within

Returns

We accept returns within 30 days of delivery. Items must be unworn, unwashed, and returned with original tags attached.

Care Instructions

To preserve the beauty of your dress, we recommend gentle hand washing or dry cleaning. Do not bleach. Hang or lay flat to dry. Steam or iron on low heat if needed.

Shipping

Orders are processed within 1–3 business days.

Standard Shipping: 5–9 business days — $3.95
Express Shipping: 4–7 business days — $9.95

Delivery times are estimates and may vary depending on your location. Tracking information will be provided once your order has been shipped.

Power your lithium battery packs with confidence using the LiitoKala 4S 12V 100A battery management system. Built specifically for LiFePO4 lithium iron phosphate cells, this circuit board provides advanced protection against overcharge, over-discharge, short circuit, and high temperature, while ensuring balanced charging for extended battery life. Its high discharge capacity makes it ideal for demanding power storage, solar, or backup applications.

Key Features

Supports 4S 12V LiFePO4 lithium iron phosphate batteries
Continuous discharge current up to 100A with protection up to 150A
Balanced charging ensures all cells maintain equal voltage
Multiple safety protections: overcharge, over-discharge, overcurrent, short circuit, and temperature
Compact design for efficient integration in battery packs

Why Choose Our LiitoKala 4S 12V 100A LiFePO4 Battery Protection Board
Unlike standard BMS modules, this board is designed with precise protection parameters for LiFePO4 chemistry. It extends battery life through accurate monitoring, balanced charging, and ultra-low power consumption. Whether for solar storage, DIY energy systems, or power tools, it delivers the reliability and durability you need.

Perfect For

DIY solar energy storage systems
Electric bikes, scooters, and power tools
Backup power banks and inverters
Any LiFePO4 12V battery pack requiring long-term stable protection

Specifications

Feature	Details
Discharge Current	100A (protection up to 150A ±10A)
Charging Current	≤60A (same port)
Internal Resistance	≤5mΩ
Size	145 × 60 × 8.36 mm ±1
Operating Temp	-20°C to +80°C
Power Consumption	≤40A (working), ≤10A (sleep)

Protection Parameters

Overcharge: 3.65V ±0.025V (delay 1000 ±500ms, release 3.5 ±0.05V)
Over-discharge: 2.35V ±0.1V (delay 1000 ±500ms, release 2.7 ±0.1V)
Equalization: 3.5V ±0.025V, 30 ±5mA current
Overcurrent: 100A ±10A (delay 1000 ±500ms)
Short circuit: ≤300s response, disconnect to release
Temperature: charge/discharge protection at 75°C, release at 65°C
